GLOBAL

• 4 Character LED-display

• 4 Banks x 50 Programs for Drum Kits

• 9 Drum banks for single drum sounds - Bass Drums, Snare Drums, Toms, Hi-Hats, Cymbals, Percussion, Bells, Tuned Percussion, Effects

• 8 User Banks x 50 sounds for single drum sounds

• Free OS updates




SOUND GENERATION

• 6-channel Percussion Modeling Syntesizer

• Tone section - Resonance modeling, Subtractive, Ring Modulation and FM-synthesis

• Noise section - Low Pass 12dB/24dB, High Pass 12db/24dB, High Pass High Cut and Band Pass 6dB/12dB filter. Adjustable resonance and filter envelope response

• Click section - 12 click types, Noise Waveforms, Short Pulses, High Pass Filtered Pulses and Chirps. Adjustable level.

EFFECTS

• Global Stereo Reverb with 5 reverb modes (Tiled Room, Room, Plate, Stage and Hall) and Color highpass/low pass. Reverb amount can be adjusted per channel.

• Global Delay with Rate (Milliseconds), Feedback and Tap Tempo mode (BPM)

• Drive, Sample Rate Reduction and Ring Modulation Effects per channel

• EQ with Gain and Frequency controls per channel

PADS AND TRIGGER INPUT

• 6 integrated rubber pads with adjustable Input Threshold/Sensitivity

• External Trigger input with adjustable Input Threshold/Sensitivity for Kick drum pad or similar

• Adjustable Dynamic Response Curves

• Channel Peak/Activity indicator

MIDI

• MIDI Note ON/OFF

• MIDI Program Change

• MIDI CC parameter control

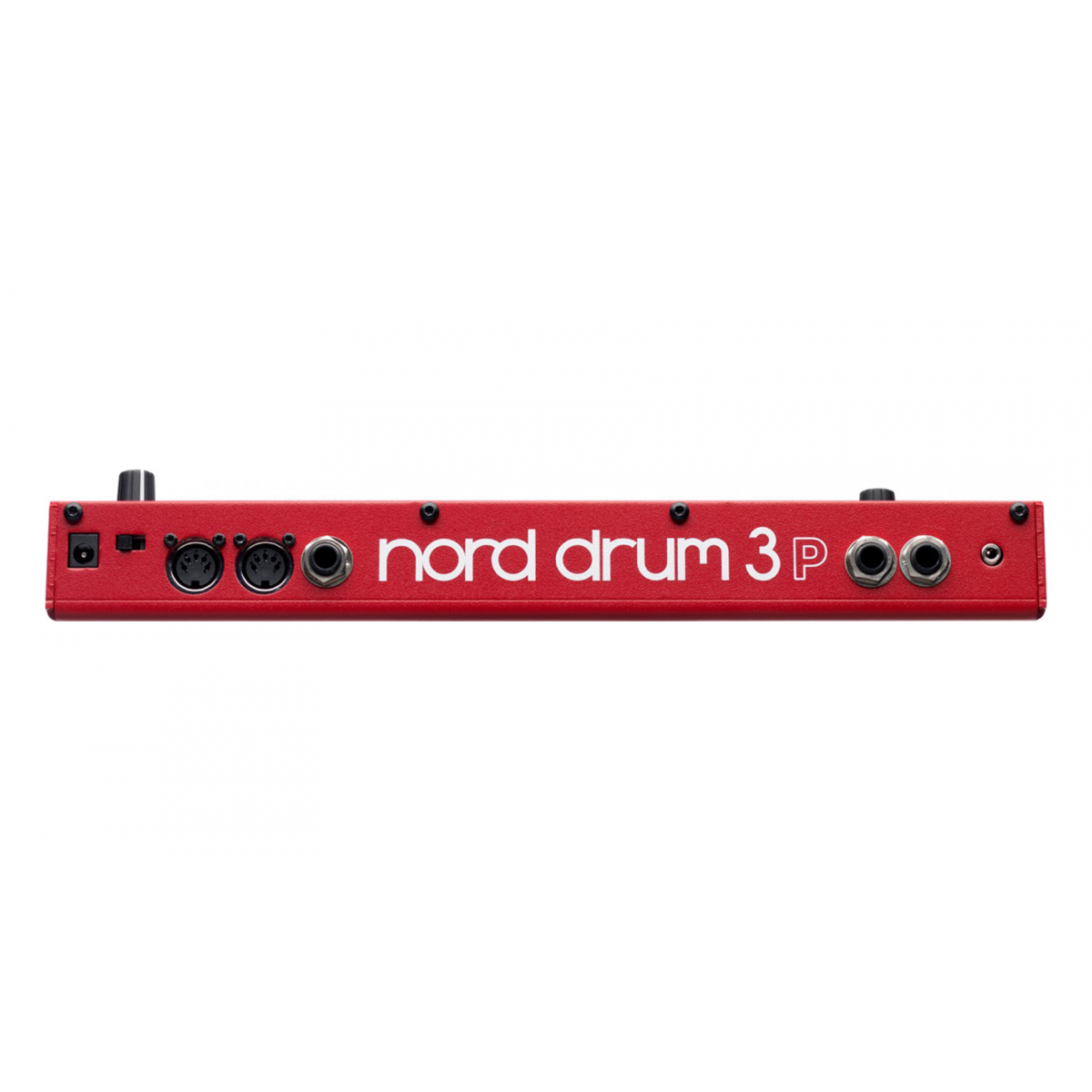

CONNECTIONS

• 2 Audio Outputs ¼', 6,35 mm (unbalanced)

• Stereo Headphones Output - 1/8”, 3,5 mm

• MIDI in & out - 5 pin DIN connectors

• 1 generic trigger input - ¼”, 6,35 mm

• DC input - 12V, 500mA




DIMENSIONS

• Nord Drum 3P: 29,9 x 4,85 x 28,1 cm (11,78' x 1.9' x 11,2')

WEIGHT

• Nord Drum 3P: 1,85 kg (4,1 lbs)

INCLUDED ACCESSORIES

• User Manual

• Universal Module Mount

• Universal Power Adapter

The super compact new Nord Drum 3P combines stunning playability with unlimited sound design possibilities! New features include integrated multi-pad, Reverb and Delay effects, a simplified sound selection mode and new Sound Banks for quickly creating custom kits on the fly.

MAIN FEATURES

6-channel Modeling Percussion Synthesizer

Integrated multipad, kick pad input and MIDI NEW

Simplified user interface with easy sound selection NEW

New preset 'Drum Select' library for kicks, snares, toms and more NEW

Advanced sound engine with Resonant Synthesis, Subtractive synthesis and FM-synthesis

Reverb and Delay Effects - adjustable amount for each pad NEW

Drive, Sample-Rate reduction, Ring Modulation and EQ-effects for each pad

MIDI in/out and full CC-control

Stereo Output with improved output level

Headphone Output with improved output level

INTEGRATED MULTIPAD NEW

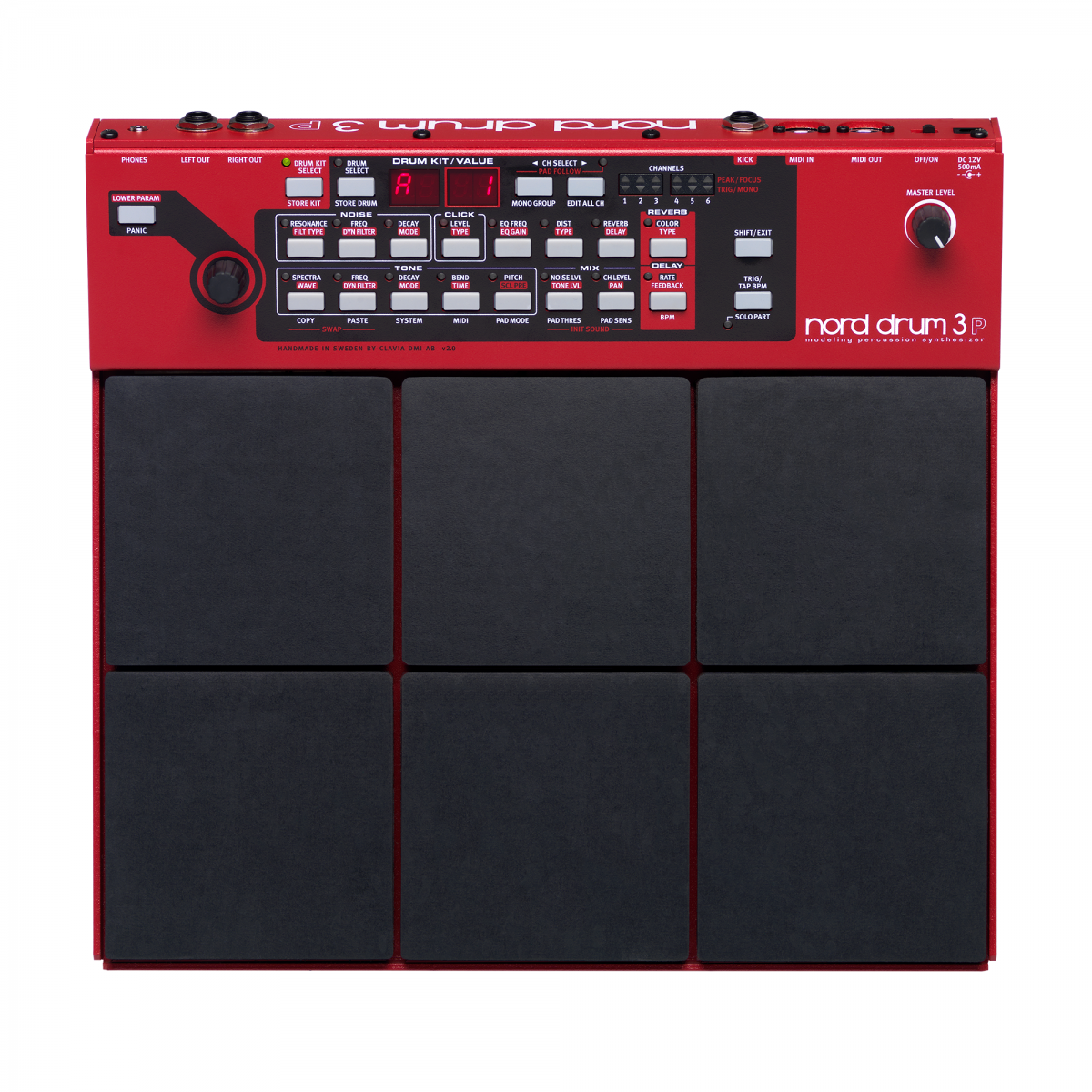

The ultra compact new Nord Drum 3P features an integrated super responsive multipad and external kick input and weighs under 2 kg (4,1 lbs)!

DELAY AND REVERB EFFECTS NEW

The great sounding global Stereo Reverb and Delay effects lets you add a whole new dimension to your drum sounds and the effect amount is easily adjusted for each drum channel.
