Native Instruments Traktor Scratch A6

Audio Converters

• Channels (A/D, D/A) :    6, 6

• Sample Rates  : 44.1, 48, 88.2, 96 kHz

• Bit Resolution  :     16, 24 Bit

• Converter     : Cirrus Logic

Line Inputs

• Input Impedance    : 47 kOhm

• A/D-D/A to Output:

• Full Scale Input Level   : +12 dBu, 3.08 Vrms

• Gain   : -2.6 dB

• Dynamic Range   : 98.9 dB (A)

• THD+N (Full Scale Level)   : 0.018 %

• Frequency Response  : (96 kHz), -1 dB     13 Hz - 45 kHz

Direct Thru:

• Maximum Input Level   : +13.35 dBu, 3.6 Vrms

• Gain  :   -4.55 dB

• Dynamic Range    : 107.8 dB (A)

• THD+N (Maximum Level)  : 0.0027 %

• Frequency Response   : -1 dB 13 Hz - 73 kHz

Phono Inputs

• Input Impedance   : 47 kOhm

• A/D-D/A to Output:

• Full Scale Input Level @ 1 kHz   : -22.2 dBu, 60 mVrms

• Gain @ 1 kHz    : +31.5 dB

• Dynamic Range @ 1 kHz   : 95.8 dB (A)

• THD+N @ 1 KHz    : 0.02 %

• Frequency Response   : IEC curve +/- 1 dB

Direct Thru:

• Maximum Input Level @ 1 kHz   : -16.2 dBu, 120 mVrms

• Gain @ 1 kHz    : +29.1 dB

• Dynamic Range @ 1 kHz    : 96.9 dB (A)

• THD+N @ 1 kHz   : 0.01 %

• Frequency Response   : IEC curve +/- 1 dB

Line Outputs (D/A)

• Full Scale Output Level    : +9.6 dBu, 2.35 Vrms

• Dynamic Range   : 101.8 dB (A)

• THD+N   : 0.008 %

• Frequency Response  : (96 kHz), -1 dB     9 Hz - 45 kHz

Headphone Output

• Maximum Output Level  : @ 10 kOhm 11.3 dBu, 3.55 Vrms

• Maximum Output Power  : 20 mW @ 100 Ohms, 11 mW @ 33 Ohms

• THD+N (Maximum Level, 100 Ohms)  : 0.011 %

• Frequency Response  : (96 kHz), -1 dB     9 Hz - 45 kHz

DIGITAL HEART. VINYL SOUL.

• Everything you need to kick off your DVS setup

• or on an external mixer

• Includes TRAKTOR AUDIO 6 soundcard, timecode vinyl and CDs, and TRAKTOR PRO 3

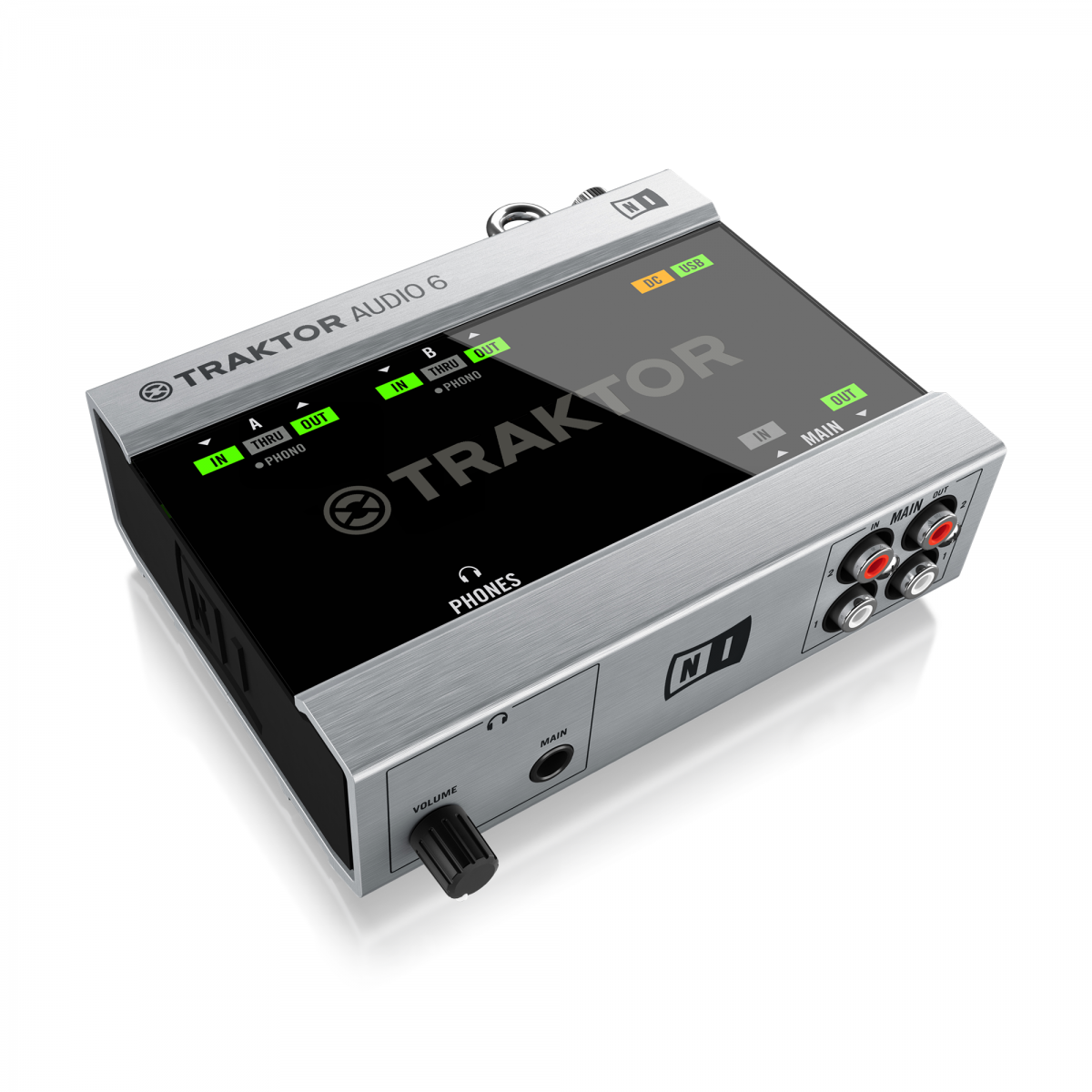

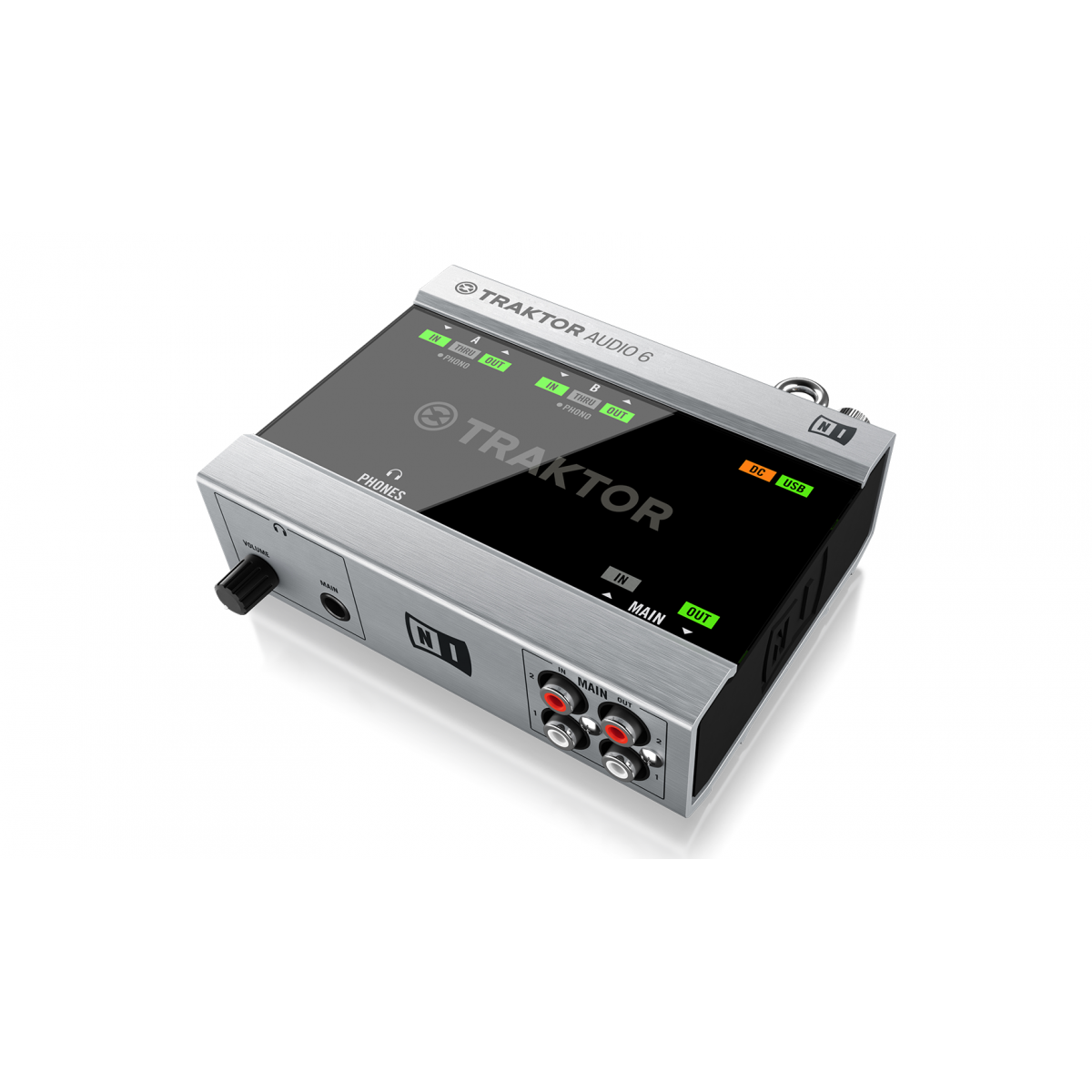

TRAKTOR AUDIO 6 SOUNDCARD

The TRAKTOR AUDIO 6 forms the heart of your DVS setup – with two stereo inputs to connect your turntables, and two stereo outputs if you want to route each TRAKTOR deck to a mixer. There’s also a main stereo output if you’re mixing everything within TRAKTOR, and a main stereo input you can use for anything you like. For full-on setup configuration, each input and output can also be independently assigned.

TWO DECKS OF TIMECODE

Control two decks in TRAKTOR using timecode vinyl – whether you’re a scratch DJ, or just like that old-school analog feel. Our DVS means you can play your tunes in TRAKTOR as if they’d been engraved onto a record. The same goes for using our timecode CDs. This bundle means you can take your pick, hook up the TRAKTOR AUDIO 6 to TRAKTOR PRO 3, and mix on a setup tuned to your DJ style.

USE YOUR FAVORITE MIXER

Got a mixer you know like the back of your hand? Route two individual TRAKTOR decks to separate channels on your mixer to integrate with your existing setup. If you’re using TRAKTOR in a club booth, setting up with the gear that’s already there is a matter of seconds.
