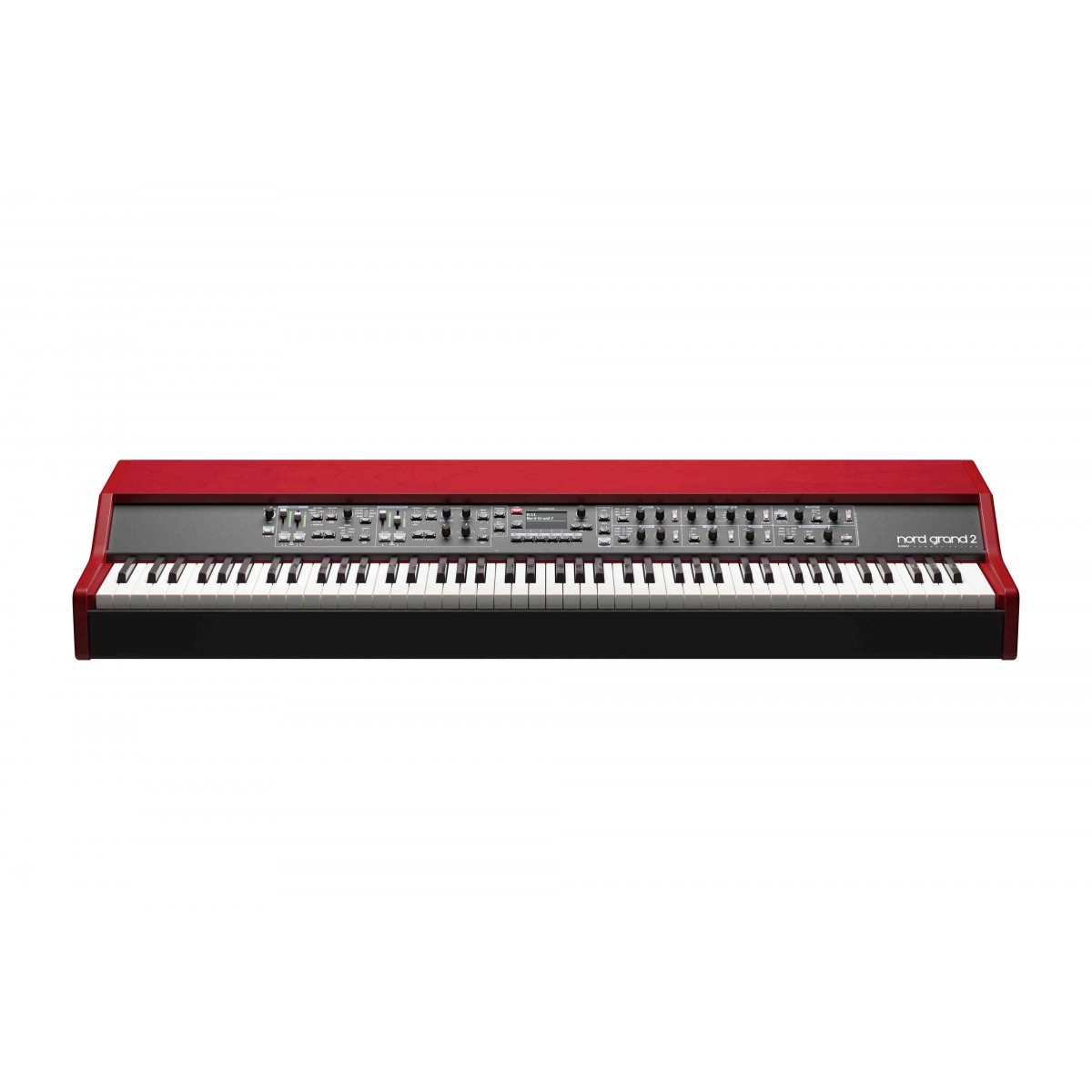

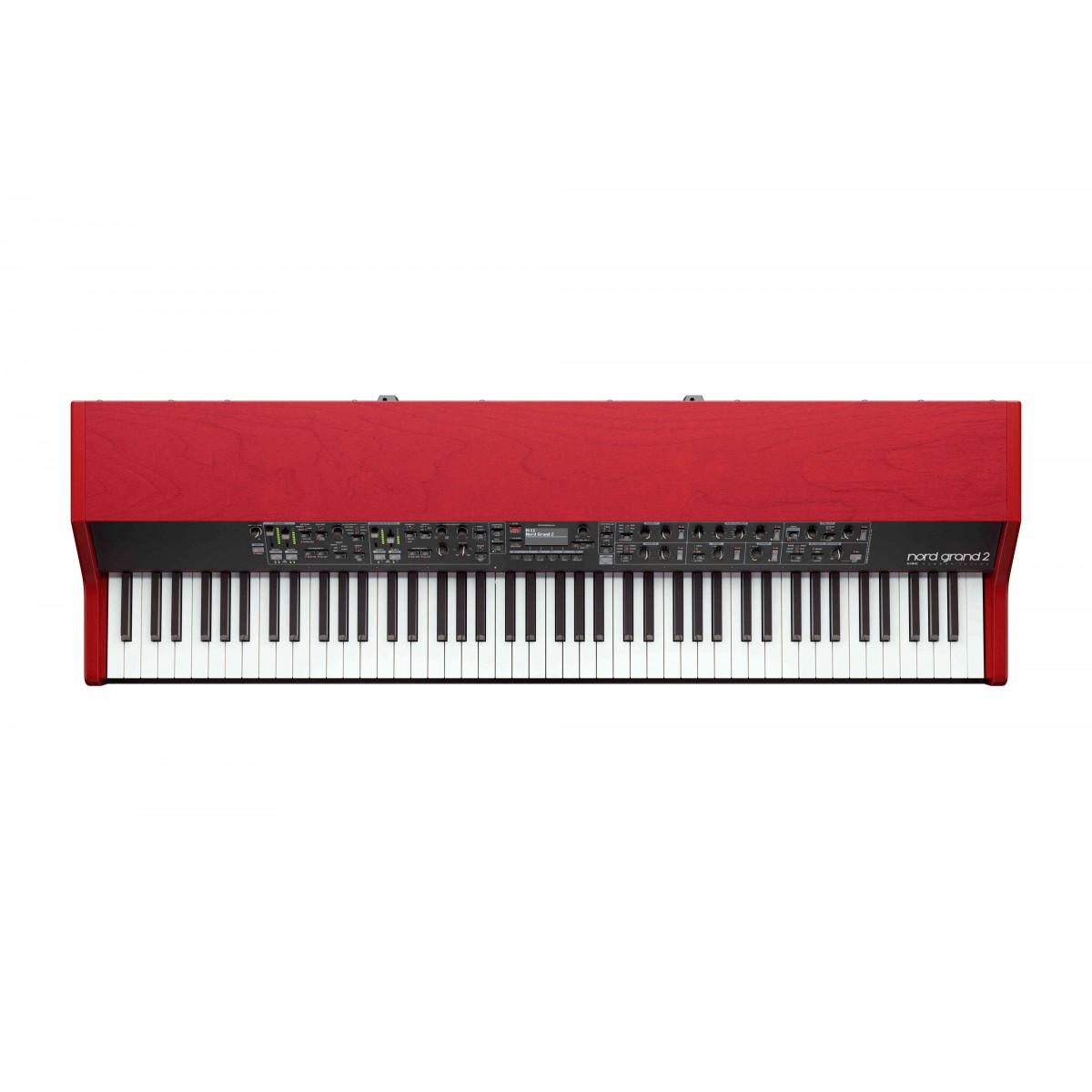

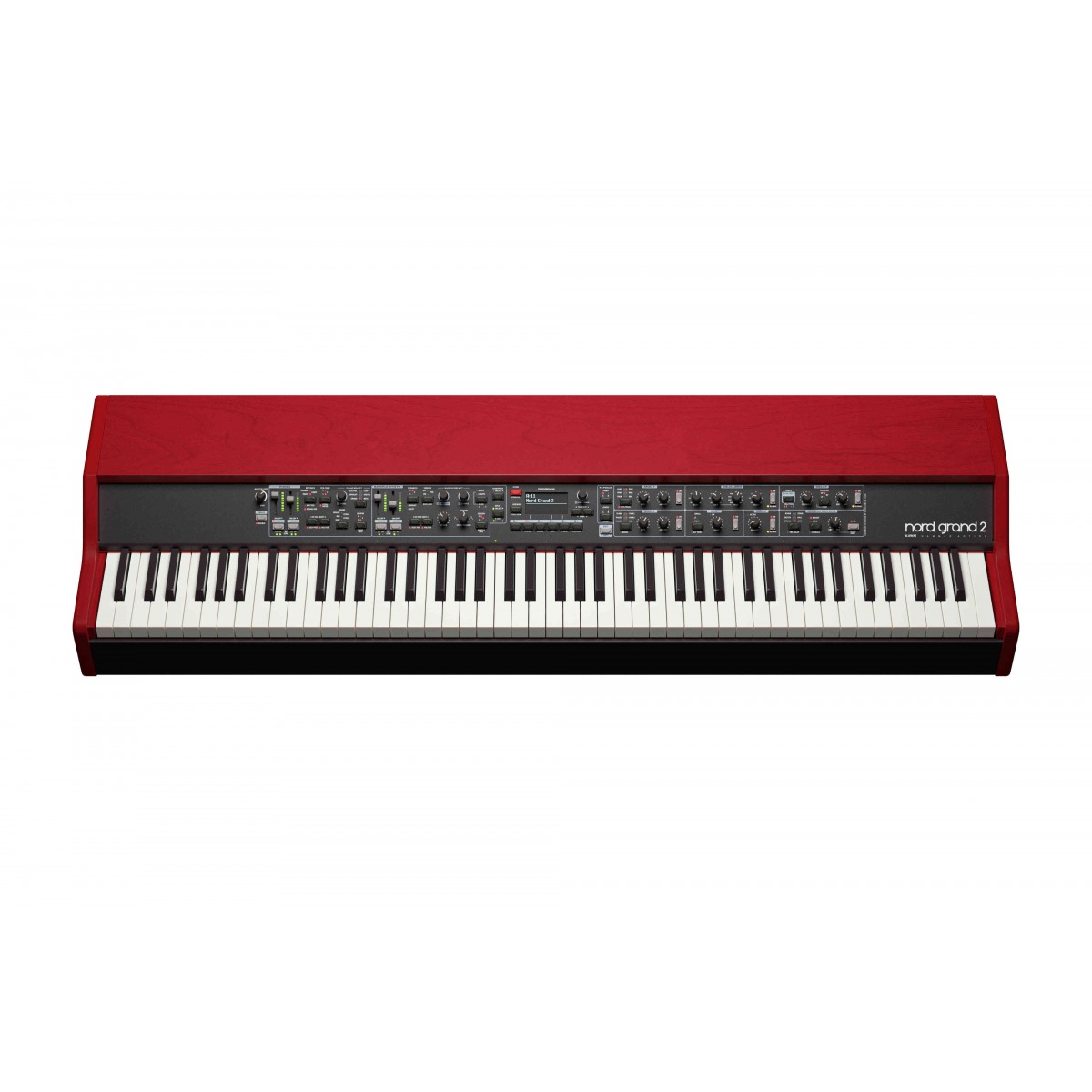

Nord Grand 2

GLOBAL

• OLED Display

• Seamless Transitions

• Split Point Crossfades

• 16 banks with 25 programs - 400 locations

• Organize functionality for programs

• Live Mode - 5 Live programs

• Global Transpose: +/- 6 semitones

• Program Transpose: +/- 6 semitones

• Fine-tune: +/- 50 Cents

• Kbd Touch: 3 velocity response curves

• 88-note Kawai Responsive Hammer keybed with Advanced Triple Sensors

• Split functionality with selectable split point and LED indication

• Optional Split crossfade

• Layer functionality

• Panel Lock option

• Mono Output option

• Dynamic Sustain Pedal action with the included Nord Triple Pedal

• USB-MIDI

• Free OS updates

PIANO SECTION

• 6 types - Grand, Upright, Electric Pianos, Clavinet, Digital and Misc.

• Each category can contain up to 20 different models.

• 120 Voice Polyphony (stereo/mono pianos)

• Piano Timbre/EQ settings (Soft, Mid, Bright) with dedicated Electric Piano filters (Soft, Mid, Bright, Dyno 1 and Dyno 2).

• Advanced String Resonance (Generation 2) - adjustable amount

• Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord

• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount

• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

SAMPLE SYNTH SECTION

• 46 Voice Polyphony

• Amp envelope with Attack and Decay/Release

• Selectable velocity sensitive low pass filter and dynamic range

• Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

• Volume controllable with Volume Pedal (not included)

MEMORY

• Approx. 2 GB dedicated to the Nord Piano Library

• Approx. 512 MB dedicated to the Nord Sample Library 3.0

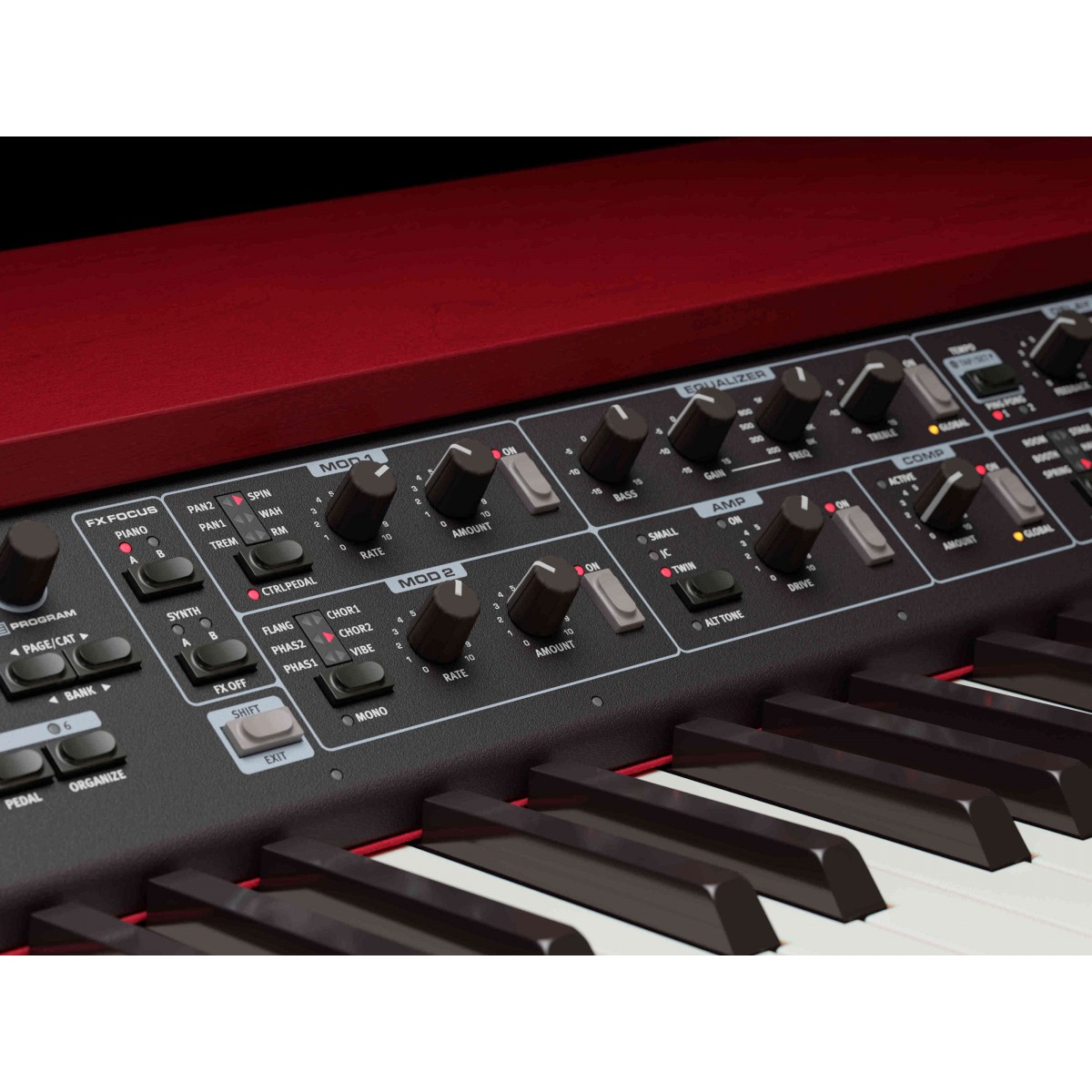

EFFECTS SECTION

Effect 1

• Pan, Tremolo, Wah and Ring Modulator

• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob

• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe

• Two selectable depths for each effect

Amp Simulations, Comp and EQ

• Comp/Amp - three amp/speaker simulations, Tube Overdrive

• Drive/Compression amount controlled with the Drive knob

• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Master Effects

• Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode

• Dedicated Delay Effect - Rate, Amount and Tap-tempo function

CONNECTIONS

• 2 Audio outputs L & R - ¼', 6,35 mm jacks, unbalanced

• 1 Monitor input - 1/8', 3,5 mm stereo jack

• 1 Headphone output - ¼', 6,35 mm stereo jack

• 1 Piano pedal input - ¼', 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc

• 1 Volume Pedal input - ¼', 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.

• MIDI In, MIDI Out - 5 pin DIN connectors

• USB - type B connector - for transferring sounds and USB MIDI

• IEC C14 power connector

DIMENSIONS

• Nord Grand: 1286 mm (50.7'), 168 mm (6.6'), 387 mm (15,2')

• Nord Triple Pedal: 264 mm (10.4'), 224 mm (8.8'), 70 mm (2.8')

WEIGHT

• Nord Grand: 20,9 kg (46.0 lbs)

• Pedal: 2 kg (4.4 lbs)

INCLUDED ACCESSORIES

• Nord Triple Pedal

• User Manual

• Power cord

OPTIONAL ACCESSORIES

• Nord Piano Monitor

• Nord Keyboard Stand V2

• Nord Soft Case

• Nord Music Stand

• Dust Cover
