Voyage Audio Spatial Mic USB

Spatial Mic USB – light & compact professional immersive microphone

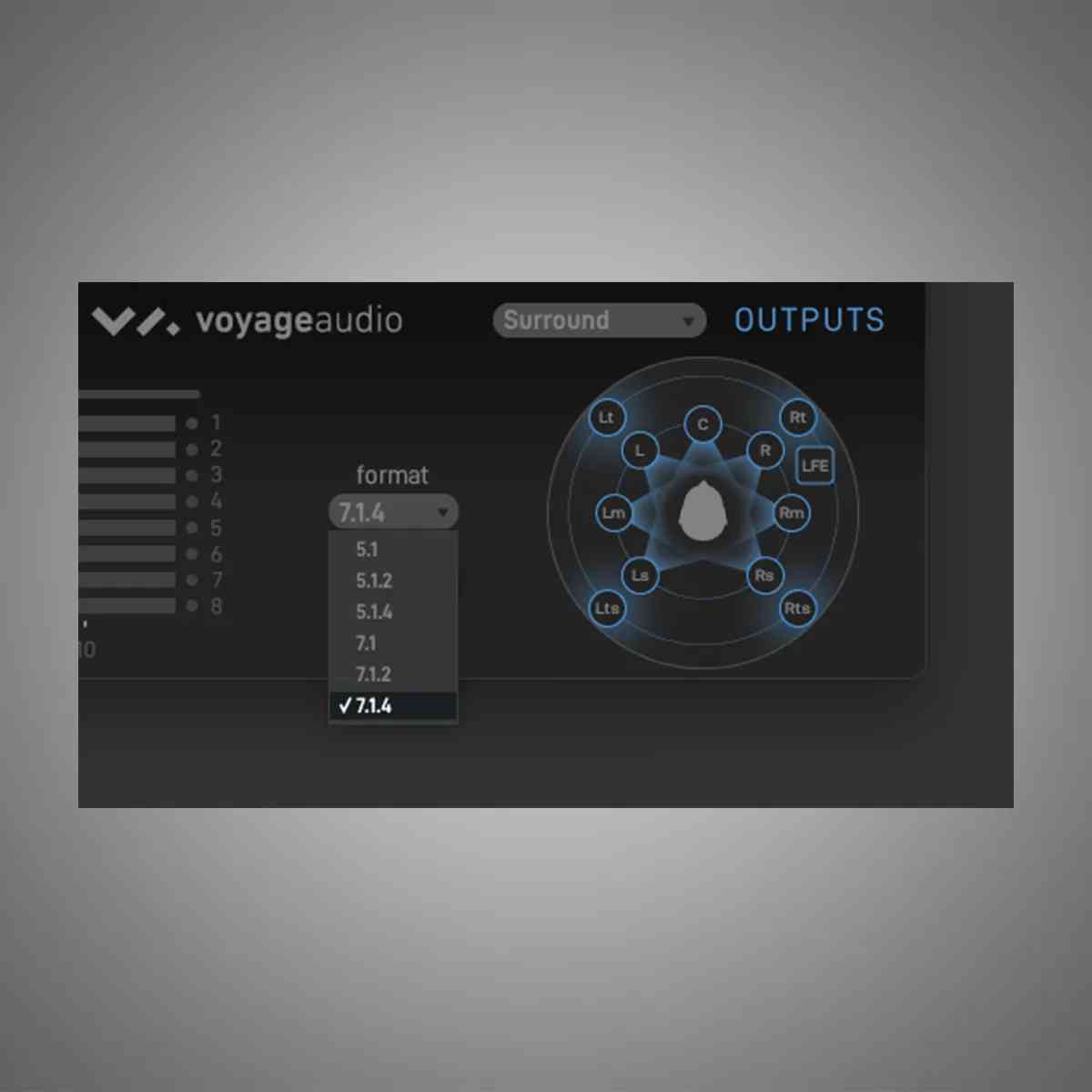

With 8 high-quality capsules, USB/ADAT connectivity, live monitoring, and a dedicated DAW plugin for output conversion, Spatial Mic USB helps you capture immersive 3D audio, surround sound, rotatable stereo, and beyond.

PRECISION SPATIAL AUDIO CAPTURE

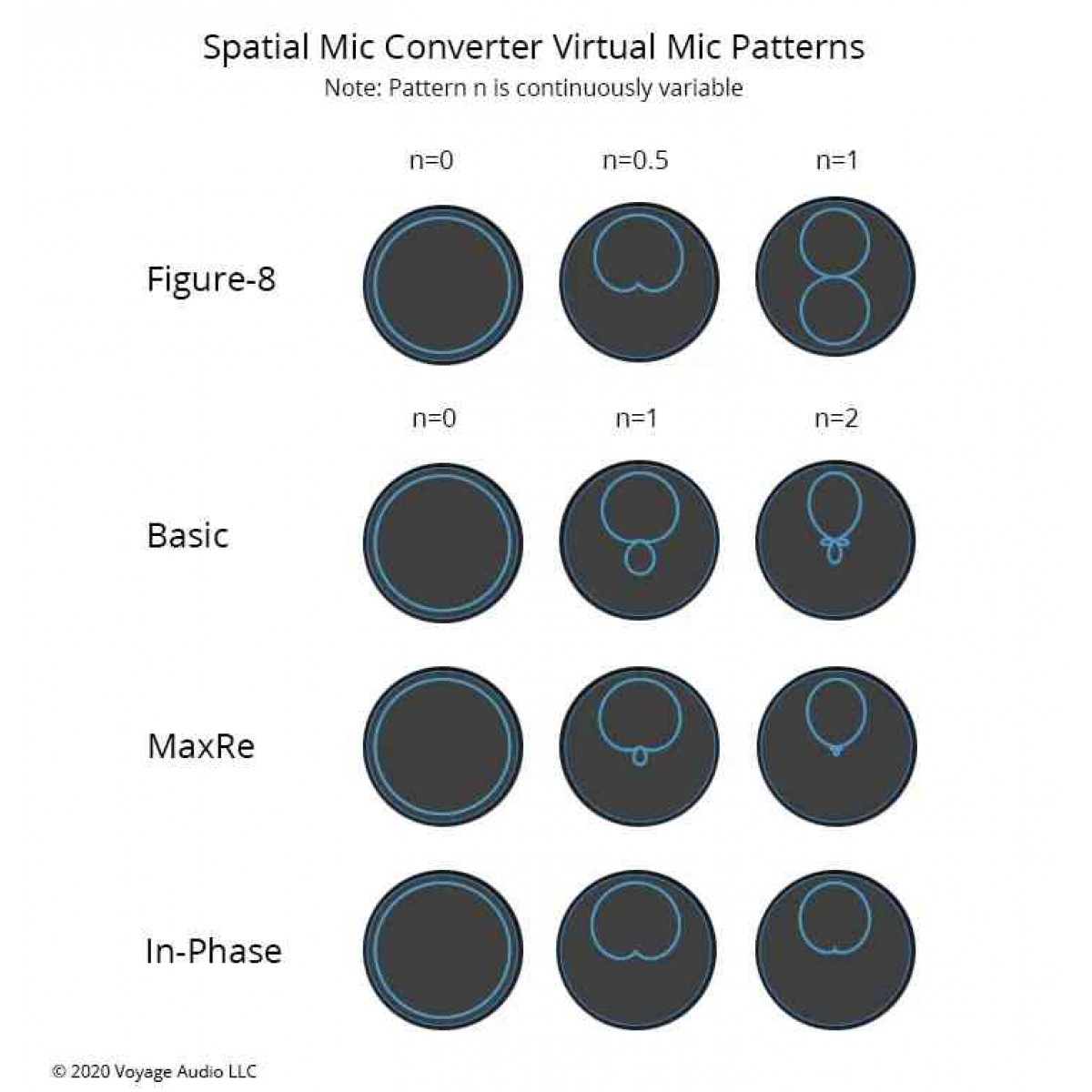

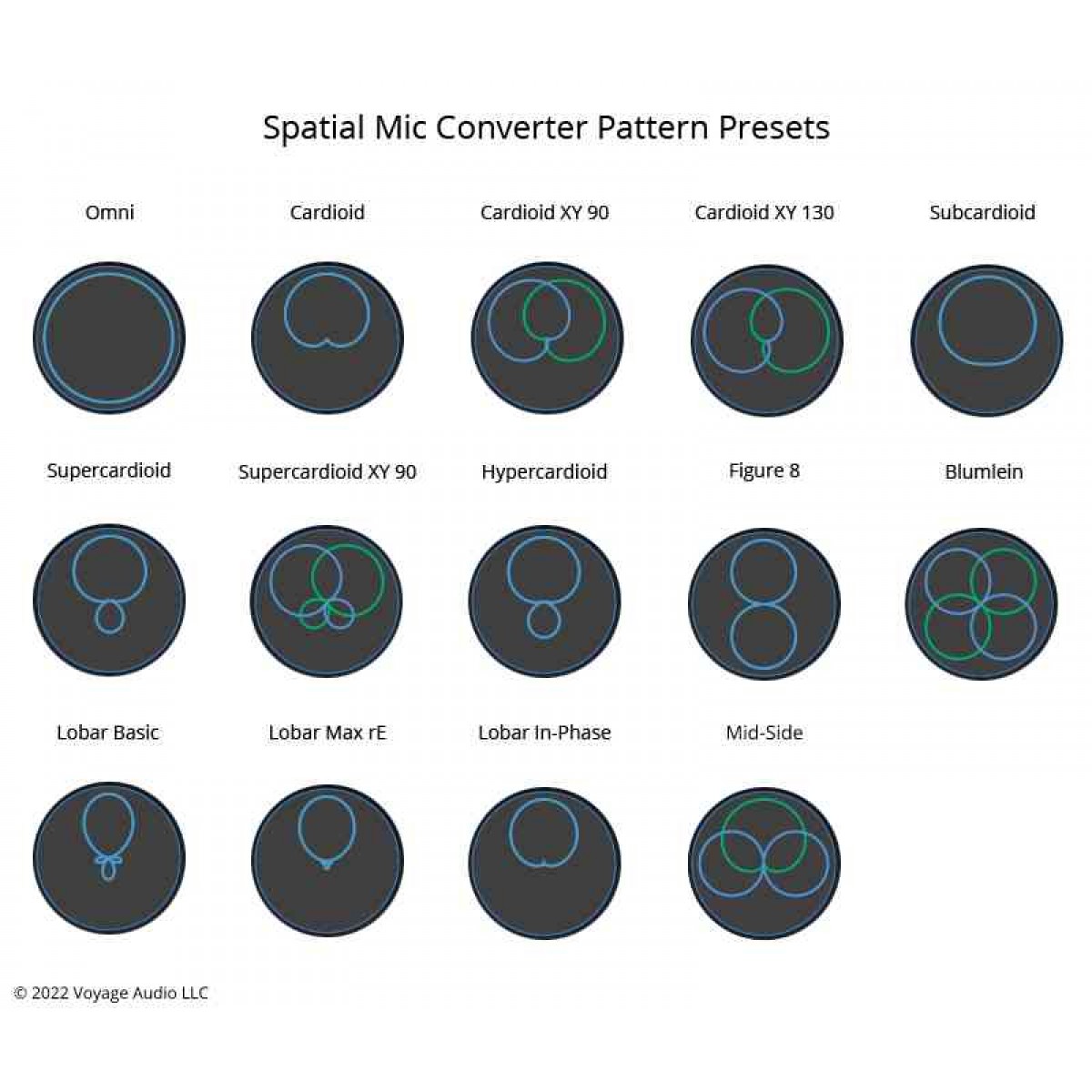

Spatial Mic lets you focus on recording immersive audio for VR, ATMOS, spatial music, concert recording, live broadcasts and much more. Want to use it in traditional stereo session? No Problem – the included software makes it easy to decode to stereo and aim virtual mics around the soundfield. No need for expensive multi-microphone & preamp setups – just plug-in and record with either Dante audio networking or USB/ADAT models.

Spatial Mic at a Glance:

• The all-in-one package lets you record right out of the box
• 8 capsule array for Second Order Ambisonics
• Live binaural headphone monitoring w/ YouTube 360 filters
• USB Streaming up to 24-bit/96kHz
• ADAT Light-Pipe up to 24-bit/48kHz

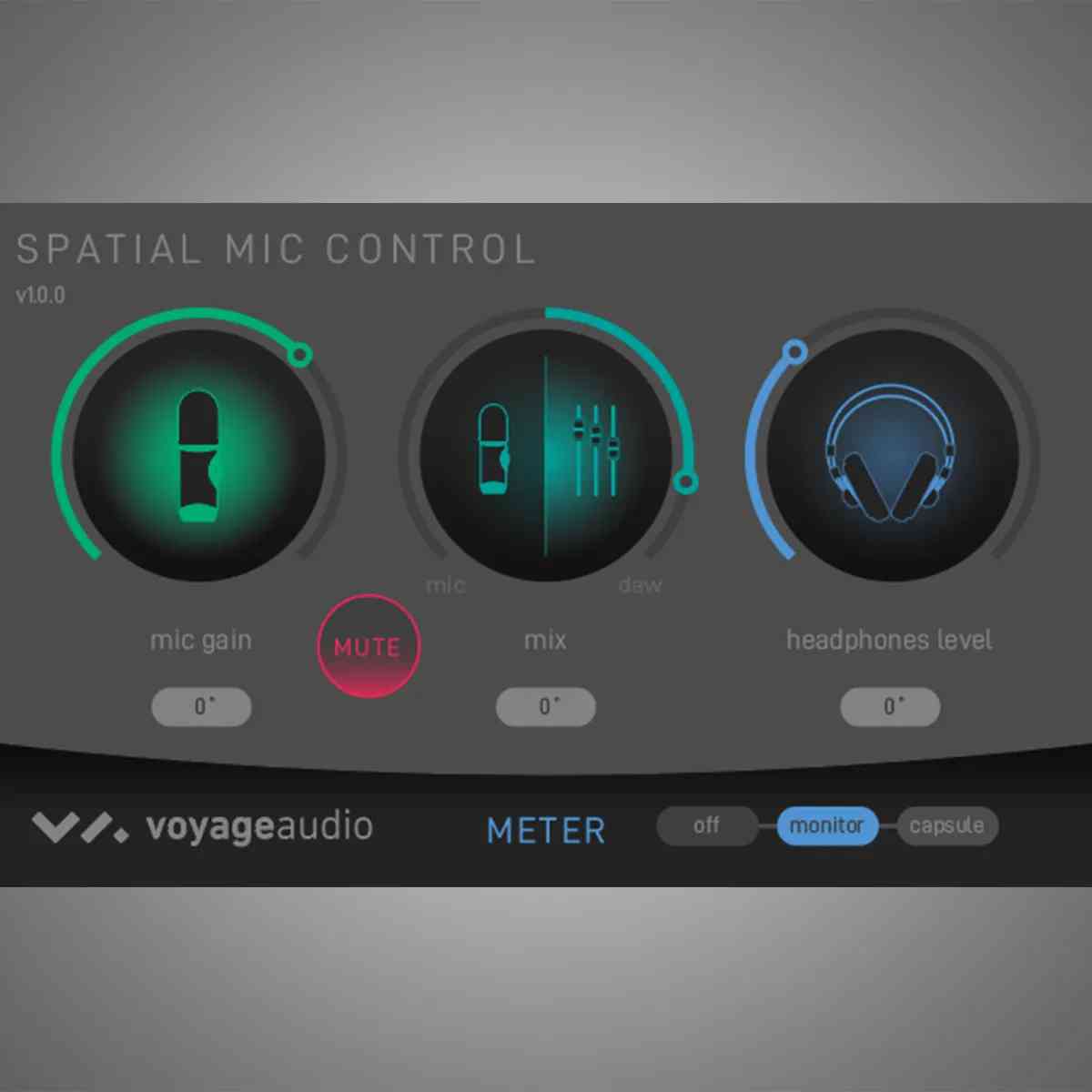

• DAW plugin and remote control app included

ELECTRICAL

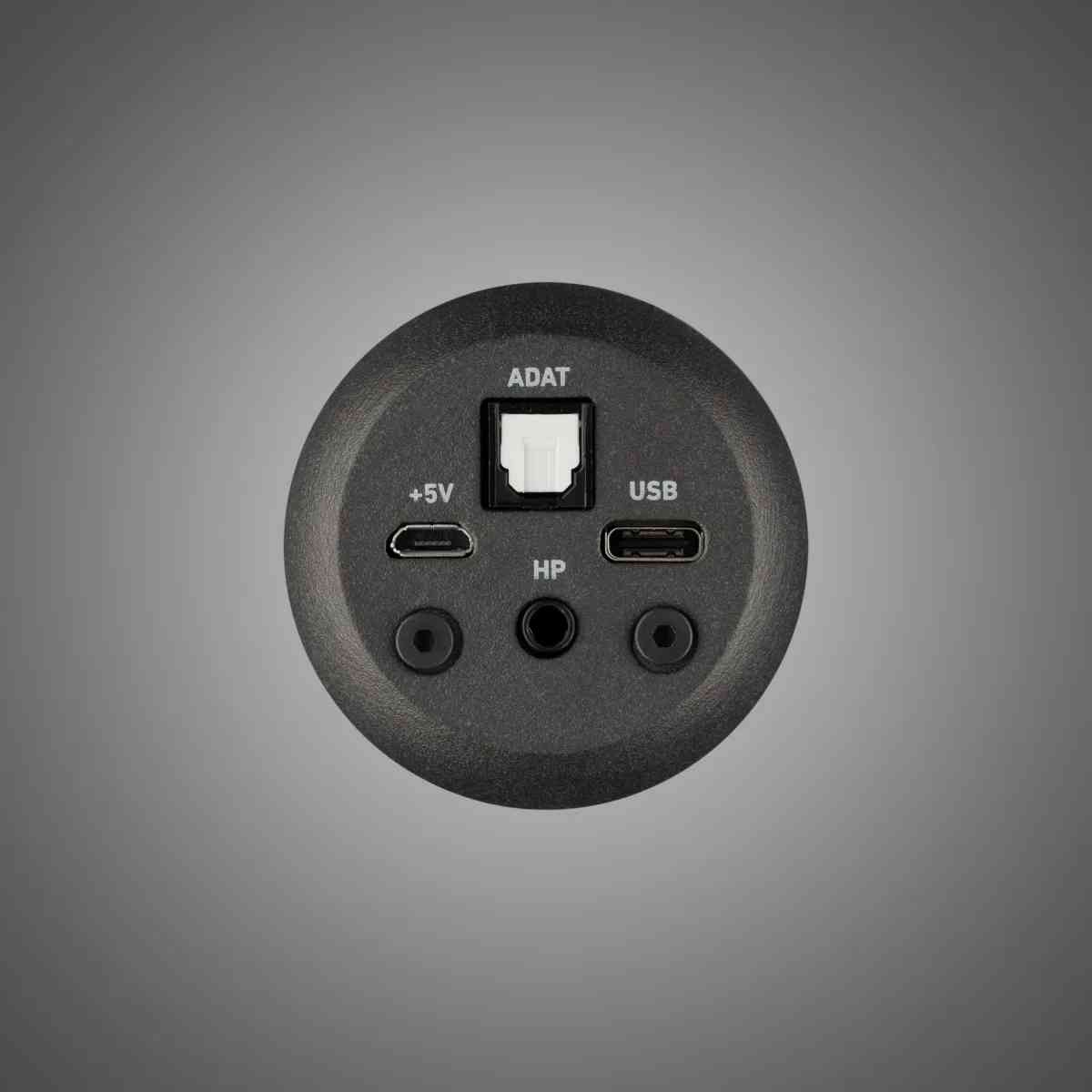

• 8 Channels Streaming to USB 2.0 Audio Host via USB-C Connector / 2 Channels Streaming Playback
• 8 Channels ADAT Lightpipe Digital Output
• USB Streaming and ADAT may be used independently or concurrently
• Sample Rates USB: 44.1kHz, 48kHz, 88.2kHz and 96kHz
• Sample Rates ADAT: 44.1kHz and 48kHz
• ADC 110dB SNR per channel, DAC 108dB SNR
• Bit Depth: 16/24-bit
• ADC clipping in pad mode: 131dB SPL
• USB bus powered via USB-C or external 5v source via micro-USB
• Headphone output: 130mW into 16 ohms via 3.5mm TRS jack
• Live binaural monitoring using Google Resonance HRTFs  (44.1kHz and 48kHz) and live Mid-Side monitoring (88.2kHz and 96kHz)

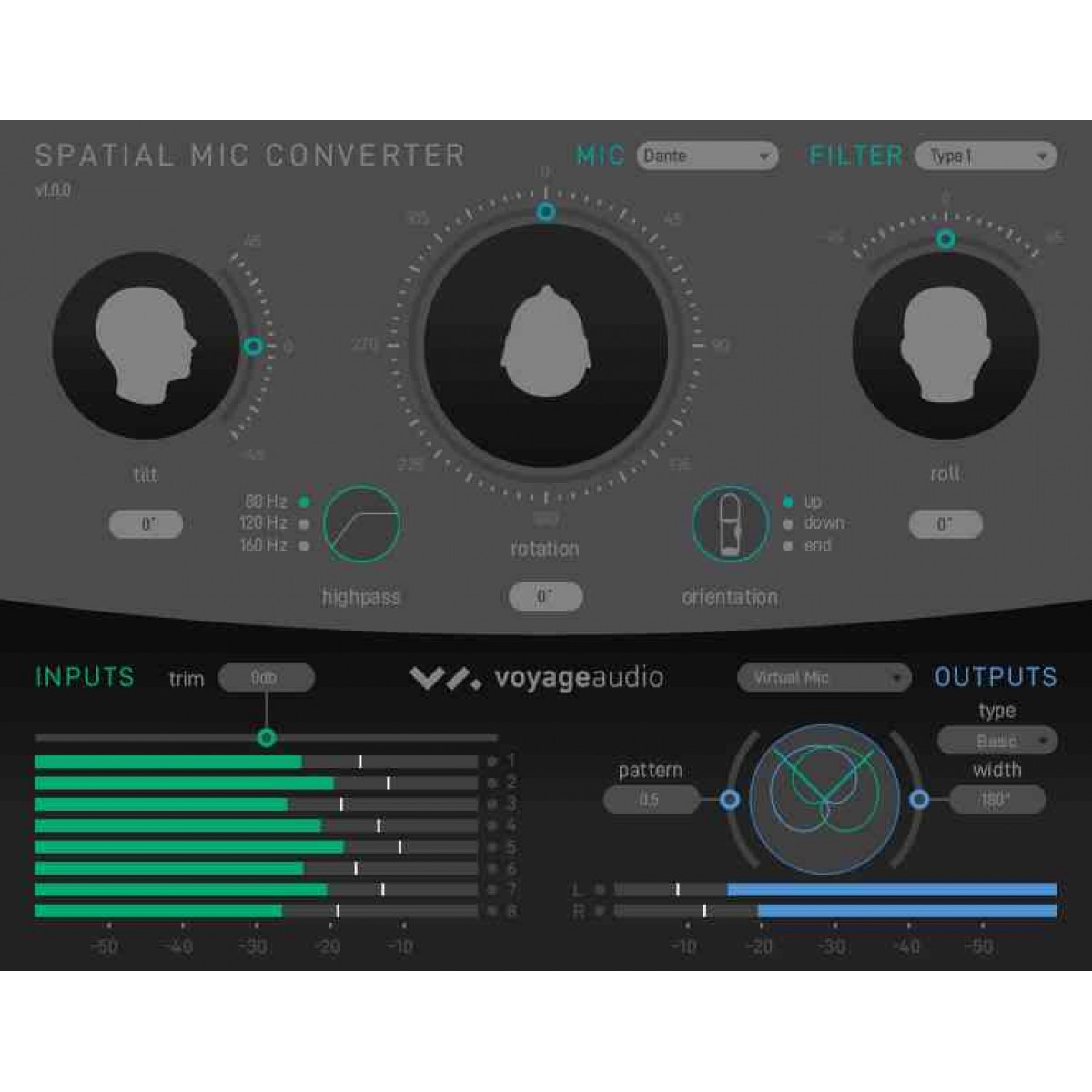

• Spatial Mic Converter plugin DSP filter type: 64-element frequency dependent output filter matrix
• Individual calibration stored in each Mic for balanced array.

CAPSULE & ARRAY

• 14mm Prepolarized Condenser
• SNR: > 72dB-A
• Frequency Response: 20Hz to 20kHz
• Max SPL for THD<3%: 120dB @1kHz
• Array: 8 transducers1

Mechanical

• Construction: Aluminum & Nylon
• Spatial Mic Dimensions: Height: 6.75’’ Diameter: 2.125’’
• Spatial Mic Weight: 0.54 lbs

System Requirements

• Host device supporting multi-channel USB Audio 2.0 or ADAT lightpipe input
• USB bus power via USB-C jack or external 5v / 500mA source via micro-USB

Software Requirements

• DAW supporting multi-channel audio tracks like Reaper, Pro Tools Studio, Pro Tools Flex, Cubase Pro, Logic Pro or Nuendo for Spatial Mic Converter Plugin
• Spatial Mic Converter plugin, MicNet Control and Spatial Mic Control app have been tested to work on macOS 10.11 and higher or Windows 10. Plugin and Control apps are available for download to test system.

Miscellaneous

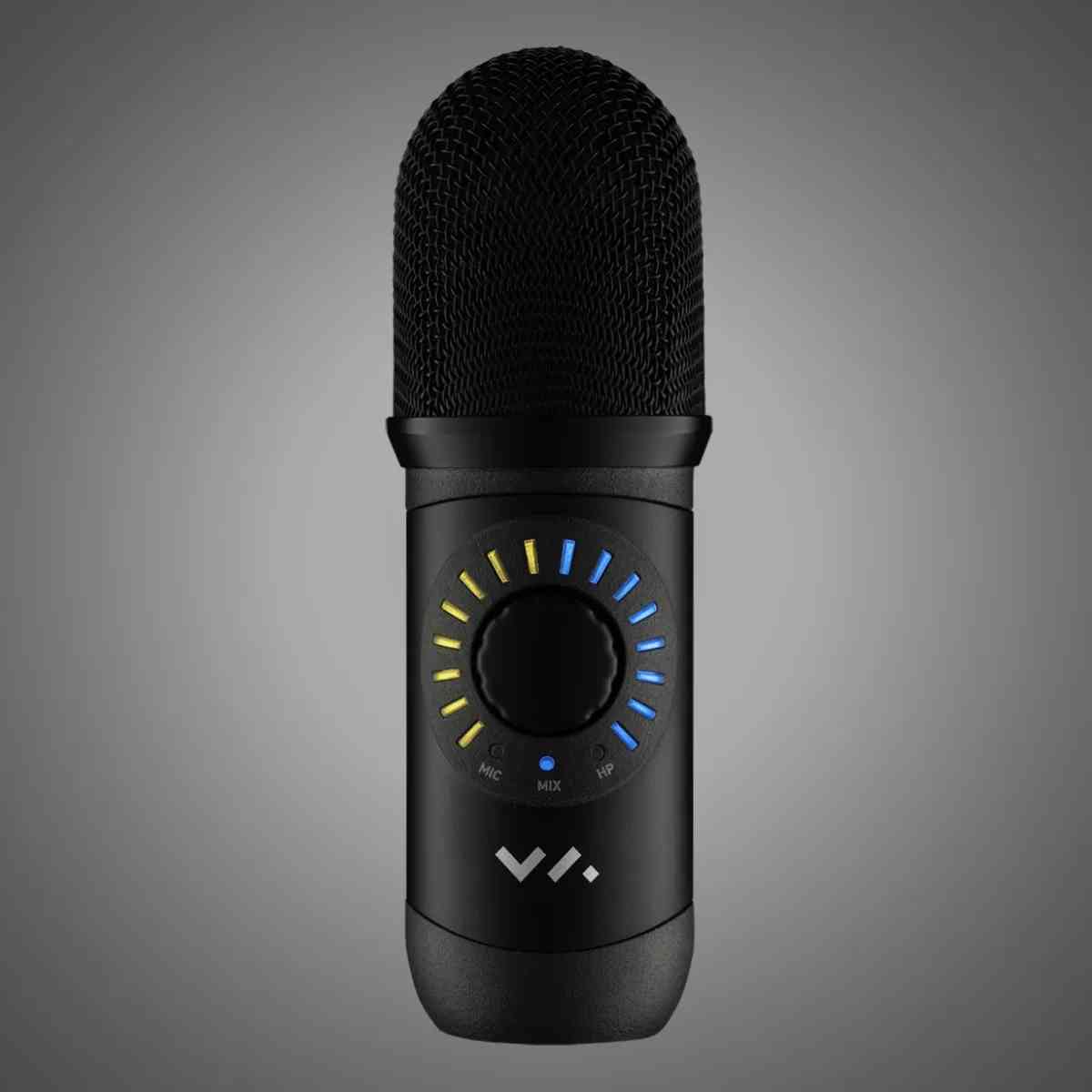

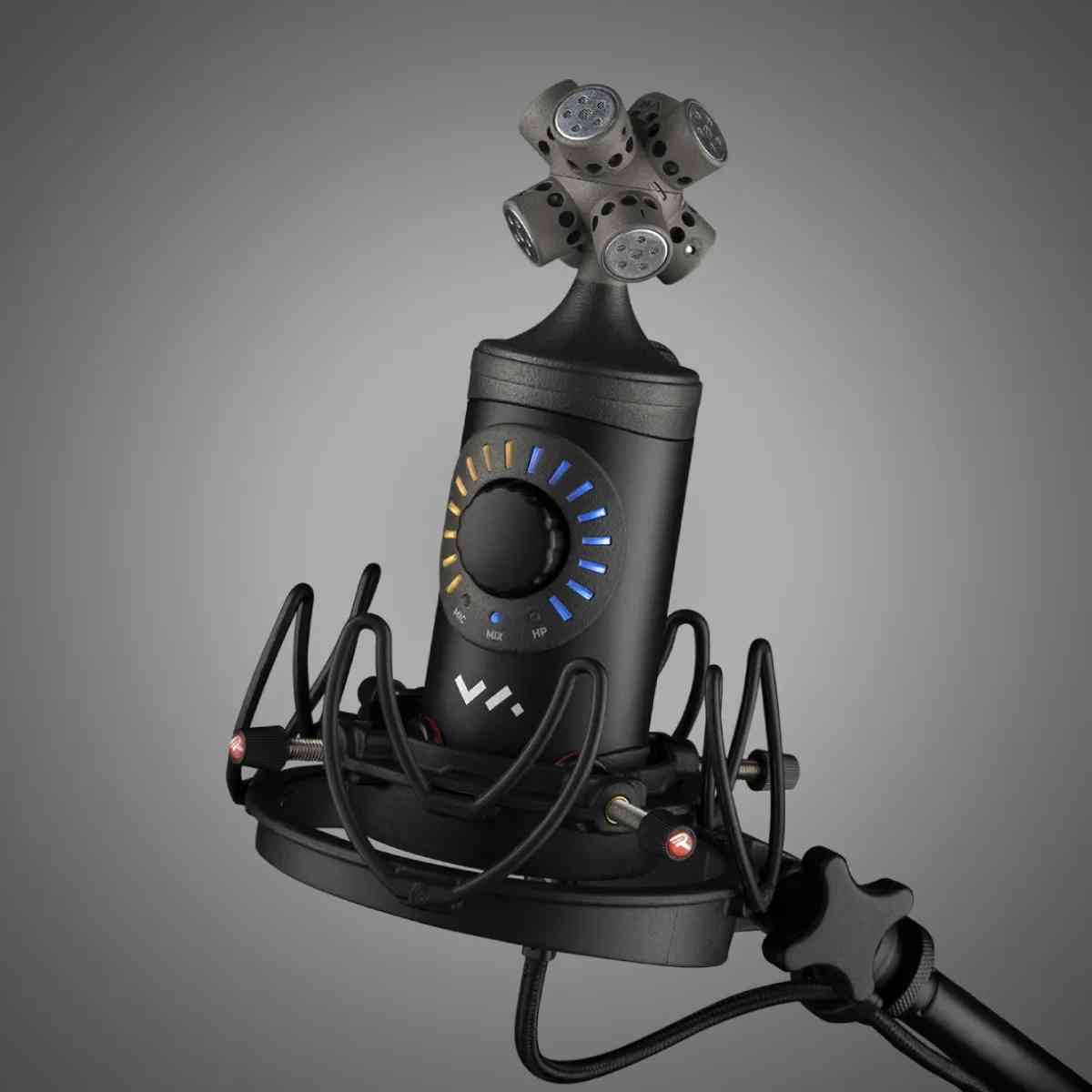

Array Ordering: Looking at Spatial Mic from the front, as indicated by the logo, Capsule 1 is on the lower right (Roman numeral ‘I’). Capsule 5 is on the top ring of the capsule array and inline with microphone knob. The bottom ring contains capsule 1-4 and the top ring contains capsule 5-8.

What’s In The Box:

• Spatial Mic USB
• USB C to C and USB C to A cable, 3 meter, black nylon braided
• ¼-20 to ⅝’’ mini swivel ball hard-mount
• Foam windshield
• Quick-start guide
