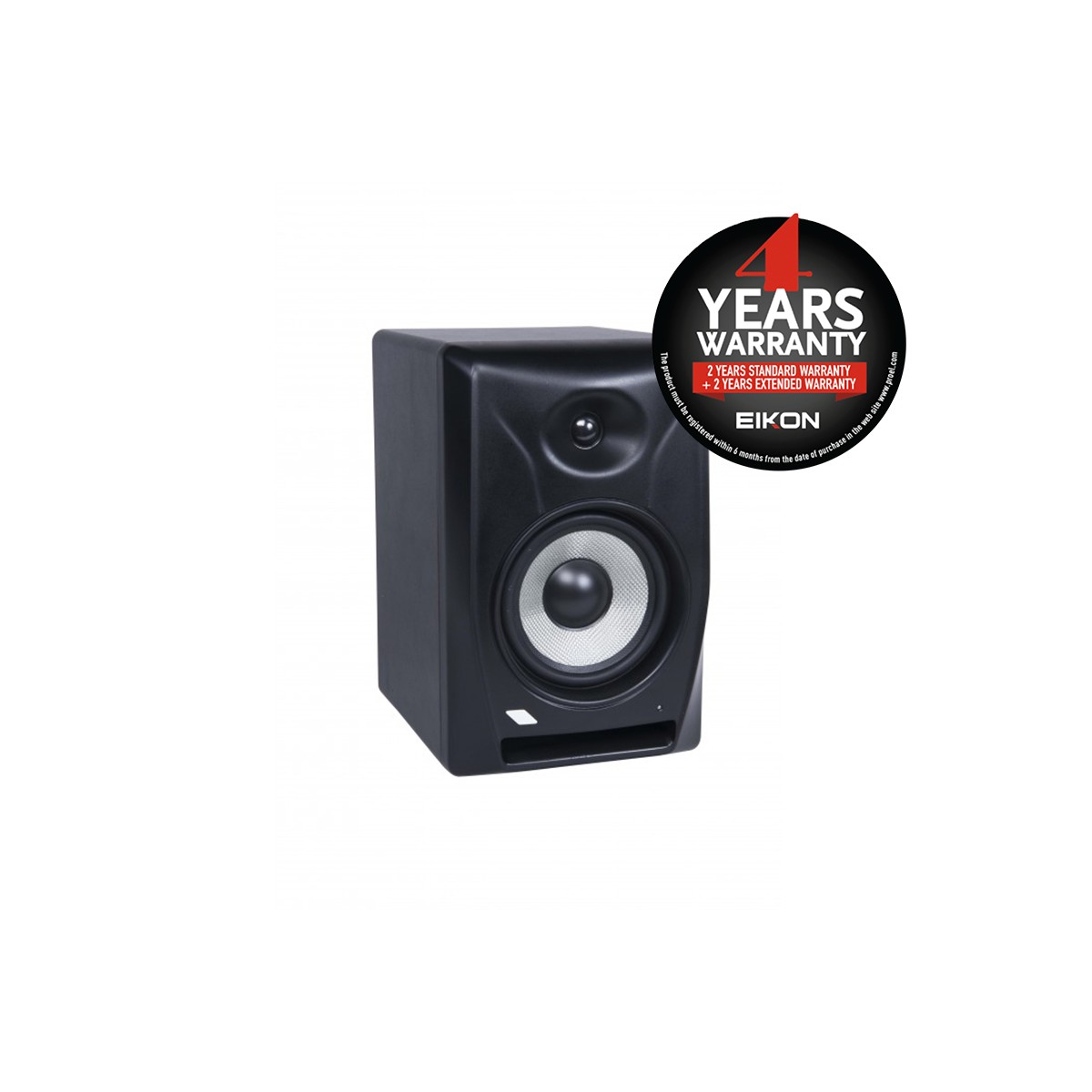

Eikon EK5NF - 5” Near-field Studio Monitor (each)
Eikon EK5NF - 5” Near-field Studio Monitor (each)
₹20,235 ₹10,117
Deal

Eikon EK5NF - 5” Near-field Studio Monitor (each)

   0 reviews
Product Code:
Availability:
Eikon EK5NF
Call for Availability
₹20,235 ₹10,117

Call 044-2819 3607 for availability


System type

2-way vented enclosure

High Frequency Device

0.75 “ dome tweeter on elliptical waveguide

Low Frequency Device

5.25” woofer with fiberglass reinforced cone

Angular Coverage

90° H x 60° V

HF Amplifier Continuous Power

25W Class AB

LF Amplifier Continuous Power

45W Class AB

Processing

Analog

Frequency Response

55 Hz - 20 kHz

Max SPL

104 dB

Connectors

1/4” JACK, XLR-F, RCA

Controls

LEVEL, HF ADJUST

Construction

Vinyl laminated MDF cabinet with ABS front

Cabinet Colour

Black

Power Supply

230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector

Dimensions (W x H x D)

185 x 285 x 230 mm

Weight

5 kg


4 years warranty
2 years standard warranty + 2 years extended warranty (The product must be registered within 6 months from the date of purchase on
www.proel.com)
Contact us
to know more.

EK NF is the ideal nearfield monitor solution for any kind of music production applications. From the carefully selected transducers to the proprietary enhanced waveguides and to the low resonance cabinet design, everything has been tailored to offer the best accuracy over the whole audio spectrum.

The perfectly optimized electronics, including highheadroom separate Class AB amplifiers for high and low section, high precision crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.


  • 0.75 “soft-dome tweeter for detailed response and a high-resolution sound

  • Proprietary integrated elliptical waveguide with accurate directivity control

  • Long-excursion 5.25” woofer with lightweight fiber-glass composite cone

  • Precisely calculated front tuning port for greater low-frequency extension

  • Multiple audio input connectors for connecting any kind of source

  • HF adjustment for a flexible control of high frequency

  • Sophisticated, carefully designed crossover filters an improved resolution

  • High-headroom Class AB 25+45W amplifiers with dual accurate CLIP LIMITER
